2022 HONDA CRF1000L ADVENTURE SPORTS SPECS, REVIEWS AND COMMON PROBLEMS

*Engine and transmission*
Displacement	1084.0 ccm (66.15 cubic inches)
Engine type	Twin, four-stroke
Power	100.6 HP (73.4 kW)) @ 7500 RPM
Torque	105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6250 RPM
Compression	10.0:1
Bore x stroke	92.0 x 81.5 mm (3.6 x 3.2 inches)
Valves per cylinder	4
Fuel system	Injection. Programmed Fuel Injection, 46 mm
Fuel control	Single Overhead Cams (SOHC)
Ignition	Full transistorized ignition
Cooling system	Liquid
Gearbox	6-speed
Transmission type	Chain (final drive)
Clutch	Wet, multi-plate with coil springs, aluminum cam assist and slipper clutch
Driveline	O-ring sealed chain
Fuel consumption	4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Greenhouse gases	113.7 CO₂ g/km. (CO2 – Carbon dioxide emission)
Emission details	Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.
*Chassis, suspension, brakes and wheels*
Frame type	Steel semi-double cradle type with high-tensile strength steel rear sub-frame
Rake (fork angle)	27.5°
Trail	113 mm (4.4 inches)
Front suspension	Inverted telescopic fork, Showa
Front wheel travel	230 mm (9.1 inches)
Rear suspension	Pro-Link® system w/ single shock, Showa
Rear wheel travel	220 mm (8.7 inches)
Front tire	90/90-21
Rear tire	150/70-18
Front brakes	Double disc. Switchable ABS. 4-piston calipers and sintered metal pads
Diameter	310 mm (12.2 inches)
Rear brakes	Single disc. Switchable ABS. 2-piston caliper and sintered metal pads.
Diameter	256 mm (10.1 inches)
Wheels	Wire spoked

Engine and transmission

Displacement

1084.0 ccm (66.15 cubic inches)

Engine type

Twin, four-stroke

Power

100.6 HP (73.4 kW)) @ 7500 RPM

Torque

105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6250 RPM

Compression

10.0:1

Bore x stroke

92.0 x 81.5 mm (3.6 x 3.2 inches)

Valves per cylinder

Fuel system

Injection. Programmed Fuel Injection, 46 mm

Fuel control

Single Overhead Cams (SOHC)

Ignition

Full transistorized ignition

Cooling system

Liquid

Gearbox

6-speed

Transmission type

Chain (final drive)

Clutch

Wet, multi-plate with coil springs, aluminum cam assist and slipper clutch

Driveline

O-ring sealed chain

Fuel consumption

4.90 litres/100 km (20.4 km/l or 48.00 mpg)

Greenhouse gases

113.7 CO₂ g/km. (CO2 – Carbon dioxide emission)

Emission details

Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.

Chassis, suspension, brakes and wheels

Frame type

Steel semi-double cradle type with high-tensile strength steel rear sub-frame

Rake (fork angle)

27.5°

Trail

113 mm (4.4 inches)

Front suspension

Inverted telescopic fork, Showa

Front wheel travel

230 mm (9.1 inches)

Rear suspension

Pro-Link® system w/ single shock, Showa

Rear wheel travel

220 mm (8.7 inches)

Front tire

90/90-21

Rear tire

150/70-18

Front brakes

Double disc. Switchable ABS. 4-piston calipers and sintered metal pads

Diameter

310 mm (12.2 inches)

Rear brakes

Single disc. Switchable ABS. 2-piston caliper and sintered metal pads.

Diameter

256 mm (10.1 inches)

Wheels

Wire spoked

*Physical measures and capacities*
Weight incl. oil, gas, etc	238.0 kg (524.7 pounds)
Seat height	850 mm (33.5 inches) If adjustable, lowest setting.
Alternate seat height	870 mm (34.3 inches) If adjustable, highest setting.
Overall height	1490 mm (58.7 inches)
Overall length	2334 mm (91.9 inches)
Overall width	961 mm (37.8 inches)
Ground clearance	250 mm (9.8 inches)
Wheelbase	1575 mm (62.0 inches)
Fuel capacity	18.77 litres (4.96 US gallons)
Oil capacity	4.90 litres (5.18 US quarts)
*Other specs*
Color options	Pearl Glare White, Matte Ballistic Black Metallic
Starter	Electric
Electrical	12V 6Ah Li-ion battery
Light	LED headlight
Factory warranty	1 year
Comments	On and off-road riding modes. Small windscreen.

Physical measures and capacities

Weight incl. oil, gas, etc

238.0 kg (524.7 pounds)

Seat height

850 mm (33.5 inches) If adjustable, lowest setting.

Alternate seat height

870 mm (34.3 inches) If adjustable, highest setting.

Overall height

1490 mm (58.7 inches)

Overall length

2334 mm (91.9 inches)

Overall width

961 mm (37.8 inches)

Ground clearance

250 mm (9.8 inches)

Wheelbase

1575 mm (62.0 inches)

Fuel capacity

18.77 litres (4.96 US gallons)

Oil capacity

4.90 litres (5.18 US quarts)

Other specs

Color options

Pearl Glare White, Matte Ballistic Black Metallic

Starter

Electric

Electrical

12V 6Ah Li-ion battery

Light

LED headlight

Factory warranty

1 year

Comments

On and off-road riding modes. Small windscreen.

See Maintenance Specs*

*Always verify maintenance and service data with the bike owner’s manual.

Get your parts with free shipping and no restock fees from REVZILLA.COM

+ PROS

Optional electronic suspension and DCT automatic gearbox
Lots of seat height options
Fancy split dash
Sounds great
Huge range

- CONS

Centre stand isn’t included
Screen isn’t electric

MORE PHOTOS OF HONDA CRF1000L ADVENTURE SPORTS

REVIEWS AND COMMON PROBLEMS WITH 2022 HONDA CRF1000L ADVENTURE SPORTS

The range-topping Africa Twin Adventure Sports is powered by a liquid-cooled 998 cc parallel twin engine that produces 93.9 bike at just 7,500 rpm and maximum torque at 6,000 rpm.

Features include the following:

Steel frame and sub-frame with twin spars
Dual 310 mm undulating discs up front with four piston Nissin calipers
256 mm wavy disc with Nissin single piston caliper at the rear
Rear dual-channel ABS with an off mode
45 mm Showa adjustable upside-down fork with 224 mm travel
a rear adjustable shock with 240 mm of travel
7-stage traction control with an off position
Tour, Urban, Gravel, and Custom riding modes LCD dash LED lighting, heated grips
Helping hand and slipper clutch
Adjustable seat width of 900 mm to 920 mm; six-speed transmission with gear position indicator
For 2018, Honda upgraded the already-impressive Africa Twin adventure bike, including the 998 cc parallel twin engine and optional automatic transmission, then added a larger fuel tank, taller suspension, and ample protection to create the Adventure Sports (ATAS).

It has a 5,4-litre larger fuel tank, a 50-mm higher seat, 20-mm more travel, an 80-mm taller fixed screen, engine bars, heated grips, and a larger belly pan than the Africa Twin, but it is 13 kg heavier.

The 2018 updates to the original Adventure Sports model include a new dashboard, improved mid range from a new airbox, a 2.3 kg lighter Lithium battery, improved footpegs, four riding modes, improved exhaust sound, auto-cancelling indicators, and seven levels of traction control.

As before, the £950 Dual Clutch Transmission (DCT) automatic transmission adds 10 kg to the vehicle’s curb weight. The front wire spoked 21″ wheel has a Dunlop Trailmax 90/80 tire while the rear 18″ wheel has a 150/70.

Accessories consist of knobby tires, a center stand, a low seat, LED fog lights, panniers, a top box, a quickshifter, and a sports silencer.

Have You Heard?
It commemorates thirty years of the Africa Twin name.

USER SCORES OF HONDA CRF1000L ADVENTURE SPORTS

Engine responsiveness, feel of acceleration and power

engine 74%

Brake feel, ABS response and emergency brake response

brakes 81%

Seat comfort, driving position and rider ergonomics

comfort 90%

price as new (or used) compared to similiar models

price 17%

design and appearance compared to similar models

design 85%

driving experience for short and long trips

driving 88%

KNOWN 2022 HONDA CRF1000L ADVENTURE SPORTS MODIFICATIONS AND TUNING

Modification 1 - LOWER CRASH BAR/ENGINE GUARD SET - HONDA AFRICA TWIN ADVENTURE SPORT

Electropolished Stainless Steel silver or Satin Black Powder Coat steel are both options.
Stout 1″ (25mm) tube with a wall thickness of 1/8″ (3mm).
CNC Bracketry and mounts are laser cut for a precise fit.
Heavy-duty Delrin guards at critical impact zones that can be easily replaced if damaged in a tip-over.
“Can the skid plate and crash bars be installed together?” is a frequently asked question. Yes, spacers are included in both parts and are used in the main mounting locations when the part is installed alone. When adding the second part, the spacer is removed to make room for the thickness of the second part’s mounting bracket.

* Please keep in mind that SRC MOTO is located in Oregon, one of the few US states without a general sales tax, so none is charged.
Please keep in mind that when shipping outside of the United States, import taxes, duties, and other local taxes may still be levied by the destination government or municipality.

Get it here:

LOWER CRASH BAR/ENGINE GUARD SET – HONDA AFRICA TWIN ADVENTURE SPORT – SRC MOTO

Modification 2 - SRC CRASH BARS / ENGINE GUARDS HONDA AFRICA TWIN (D)

Available Silver electropolished stainless steel or Satin Black Powder Coated steel
1″ (25mm) tube with a wall thickness of 1/8″ (3mm).
CNC Bracketry and mounts are laser cut for a precise fit.
Heavy-duty Delrin guards at critical impact zones that can be easily replaced if damaged in a tip-over.
Choose between DCT and 6-speed models

“Can the skid plate and crash bars be installed together?” is a frequently asked question. Yes, spacers are included in both parts and are used in the main mounting locations when the part is installed alone. When adding the second part, the spacer is removed to make room for the thickness of the second part’s mounting bracket.

Get it here:

SRC CRASH BARS / ENGINE GUARDS HONDA AFRICA TWIN (D) – SRC MOTO

Modification 3 - REAR BRAKE FLUID RESERVOIR GUARD HONDA AFRICA TWIN (D)

This tough stainless steel guard guards the vulnerable plastic rear brake fluid reservoir, preventing disaster from a simple tip over in the desert or on a rocky trail!

ATTENTION! Please inspect your bike before placing an order. Some models have the mounting bolt in the back, while others have the mountain bolt in front.

Position of mounting: left (rear) or right (front)
Satin black powder coat or natural stainless finish
Fits HONDA AFRICA TWIN models with the Rear Brake Fluid Reservoir mounted to the left or right.

Installation is simple and requires only common hand tools.

Get it here:

Rear Brake Fluid Reservoir Guard – HONDA AFRICA TWIN 2016-2020 – SRC MOTO

Modification 4 - SIDE STAND FOOT ENLARGER HONDA HONDA AFRICA TWIN (D)

This prevents your side stand from slipping into soft ground or scorching pavement!
Don’t discover why these are so popular the hard way!
Don’t return to your parked bike to discover it on its side after leaving it on scorching pavement or loose soil!
This side stand extender has a broad contact area (50% greater than stock) that improves the motorcycle’s parking footprint on uneven and soft terrain.

Installed in a matter of minutes using common hand tools.
For long life, it is made of high-quality stainless steel.
Stainless steel laser-cut with Inox hardware

Get it here:

Sidestand foot enlarger – HONDA CRF 1000L Africa Twin – SRC MOTO

Modification 5 - REAR BRAKE FLUID RESERVOIR GUARD

This tough stainless steel guard guards the delicate plastic rear brake fluid reservoir, preventing calamity from a simple tip over in the desert or on a rocky route!

ATTENTION! Please inspect your bike before placing an order. Some models have the mounting bolt at the back, while others have the mountain bolt in front.

Position of mounting: left (rear) or right (front)
Satin black powder coat or natural stainless finish
HONDA AFRICA TWIN ADVENTURE models are compatible.

Get it here:

Rear Brake Fluid Reservoir Guard – HONDA AFRICA TWIN 2016-2020 – SRC MOTO

Modification 6 - CARGO TAIL RACK

Get it here:

Cargo Tail Rack HONDA AFRICA TWIN (D) – SRC MOTO

Modification 7 - TACKFORM ENDURO PHONE / GPS MOUNT

ENDURO ACKFORM
The Tackform Enduro Motorcycle Mount is the ultimate phone mounting solution for mounting a smartphone on your motorcycle, dirt bike, 4 wheeler, quad, snowmobile, or anything else you can think of. Made of high-strength aluminum, this piece is built to last a lifetime. This motorcycle mount can withstand the roughest terrain while keeping your phone securely seated in the phone cradle. With a single hand, you can easily place or remove the phone. You can mount your phone in either landscape or portrait mode. Swivel the phone to any desired viewing angle thanks to the rock solid ball and socket joint. You’ve come to the right place if you like to go fast and want a mount that will outlast you.
Buy it now and use it for the rest of your life.

Get it here:

TACKFORM ENDURO Phone / GPS Mount – SRC MOTO

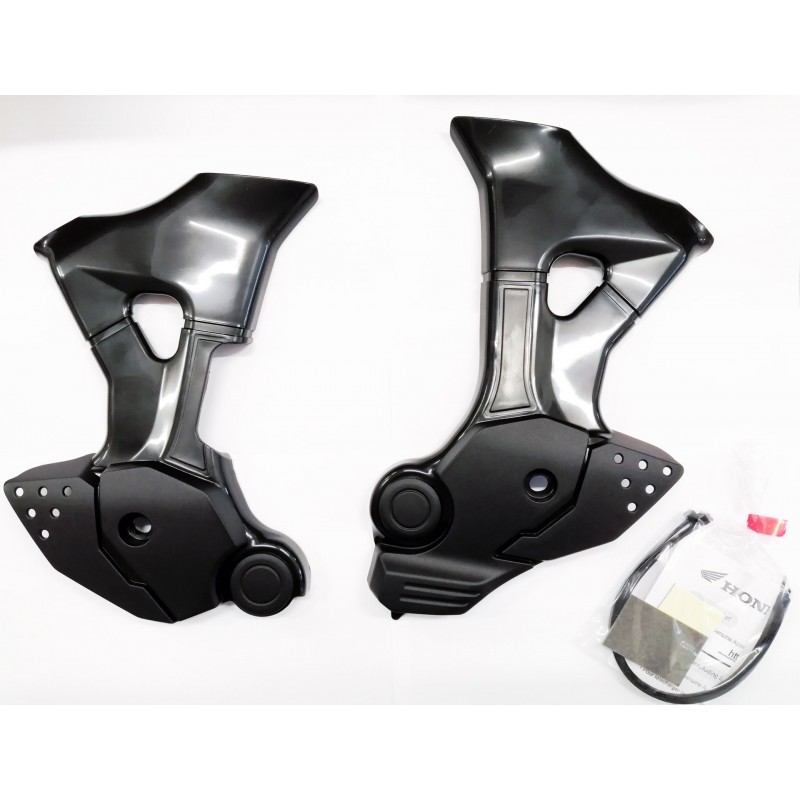

Modification 8 - HONDA BOTTOM FRAME PROTECTION

Get them here:

Honda bottom frame protection for Honda Africa Twin CRF (africa-twin-shop.com)

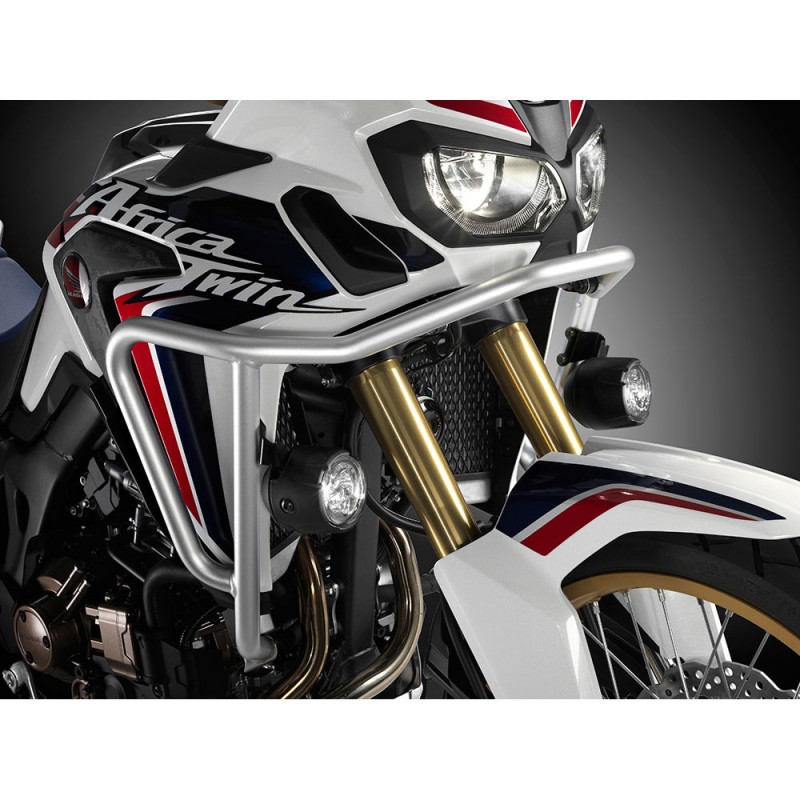

Modification 9 - ADDITIONAL LIGHTS

Get them here:

Honda additional lights for Honda Africa Twin CRF (africa-twin-shop.com)

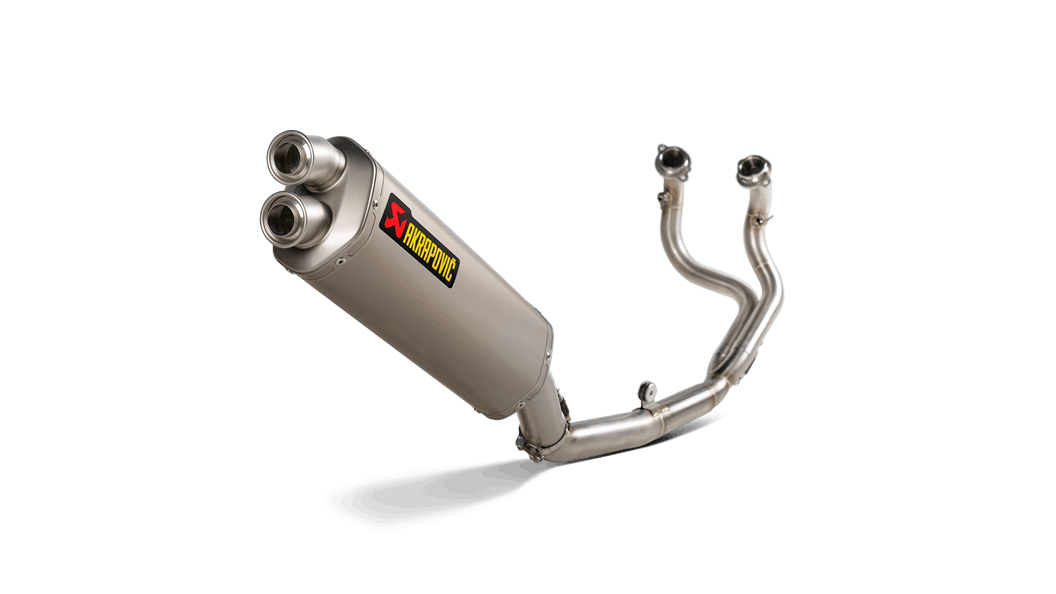

Modification 10 - HONDA CRF1100L AFRICA TWIN 2022

The Akrapovi Racing system is intended for riders that are looking for maximum performance. When compared to the factory exhaust system, the race system is lighter and features great production quality, high-tech materials, and, of course, increased engine performance mixed with genuine racing sound output. The double-flow muffler is a one-of-a-kind blend of a hexagonal design and a more traditional rear endcap, capped with a long-lasting titanium muffler sleeve and a strong carbon-fibre clamp.

ECU remapping is suggested for optimal performance, throttle response, and durability.

Get it here:

Honda CRF1100L Africa Twin 2022 Racing Line (Titanium) – Akrapovič Motorcycle Exhaust (akrapovic.com)
